copper welding cables Spartech International offers a wide range of Copper Welding Cables for various purposes. As manufacturers of Copper Welding Cables, we provide Welding Cable that is made of high grade copper ensuring excellent conductivity. These Welding Cables are ISI marked and thus are designed to meet the set international quality standards. We also have authorized dealers and suppliers of cables in Gujarat , Mumbai and other cities. A copper cable consists of two or more copper wires running side by side and bonded, twisted or braided together to form a single assembly. Electrical cables may be made more flexible by stranding the wires.

Copper wires in a copper cable may be bare or they may be plated to reduce oxidation with a thin layer of another metal, most often tin but sometimes gold or silver. Plating may lengthen wire life and makes soldering easier. Twisted Pair and coaxial cables are made to reject electromagnetic interference, prevent radiation of signals, and to provide transmission lines with defined characteristics. Shielded cables are encased in foil or wire mesh.
Further, these cables are available at affordable prices. We also have authorized dealers and suppliers of cables in Mumbai, Gujarat, Delhi and many more cities.

Technical Specification

Conductor Area (mm2)

No. & Dia of Wires (mm)

Current Rating Maximum Duty Cycle of 60% (Amps)

Nominal Thickness of Covering (mm)

Max. DC Resistance of Conductor at 20oC (ohms/km)

Voltage Drop
(Volt/10m)

HFOR/TRS	HFOR/TRS	HFOR	TRS	HFOR/TRS	HFOR/TRS	HFOR at 90o	TRS at 60o C
16	511/0.20	135		2.00	1.210
25	354/0.3	186	129	2.0	1.23	1.574	0.328
35	495/0.3	227	159	2.0	0.901	1.153	1.045
50	708/0.3	287	200	2.2	0.634	0.811	0.735
70	999/0.3	361	253	2.4	0.445	0.570	0.516
95	1351/0.3	438	306	2.6	0.334	0.428	0.516
120	1702/0.3	522	365	2.8	0.256	0.328	0.297

We cater to your welding requirements of HOFR Welding Cables in the form of Spartech International Welding Cables and Weldcor.

For more information, fill our Enquiry Form.

HOFR Welding Cables
HOFR Welding Cables are Designed for the secondary (high current) connection to automatic or hand – held metal arc welding electrodes. It is suitable for flexible use under rugged conditions, on assembly lines and conveyor systems, in machine tool and automatically operated line and spot welding machines. SPARTECH INTERNATIONAL, offers a vide range of HOFR Welding Cables for various purposes. As manufacturers of HOFR Welding Cables, we provide Welding Cable that is made of high grade copper ensuring excellent conductivity. These Welding Cables are ISI marked and thus are designed to meet the set international quality standards. We also have authorized dealers and suppliers of cables in Gujarat , Mumbai and other cities.

Features

We cater to your welding requirements of HOFR Welding Cables in the form of Spartech International Welding Cables and Weldcor.

For more information, fill our Enquiry Form.

Alumunium Cables
We provide Aluminium Welding Cable of superior quality to attain utmost satisfaction from the customers. The Aluminum Cables that we offer is best in quality and cheap in price. As manufacturers of Aluminum Welding Cables, we provide our customers with best quality cables so as to enable sustainability, durability and resistance. Aluminium Cables To ensure trouble-free performance of the cables in the field, strict quality control checks are carried out at every stage of cable manufacture, from selection & sourcing of raw materials to in-process inspection right up to the finished products and final packing & dispatch of finished goods. Our aluminum welding cables are ISO certified after passing from every test to provide our customers with best quality and satisfaction.

Features

Preferred For	Resistance Against	Available Sizes
Customized Sizes	Chemicals and Acids	16 sq.mm
High Reliability	Oils	25 sq.mm
Flexibility	Weather	35 sq.mm
Safe Usage	Sunlight	50 sq.mm
		70 sq.mm

Conductor Area (mm2)

No. & Dia of Wires (mm)

Current Rating Maximum Duty Cycle of 60% (Amps)

Nominal Thickness of Covering (mm)

Max. DC Resistance of Conductor at 20oC (ohms/km)

Voltage Drop
(Volt/10m)

HFOR/TRS	HFOR/TRS	HFOR	TRS	HFOR/TRS	HFOR/TRS	HFOR at 90o	TRS at 60o C
16	510/0.2	174	121	2.0	1.210	1.555	1.409
25	800/0.2	228	161	2.0	0.780	0.997	0.903
35	1114/0.2	285	201	2.0	0.554	0.708	0.641
50	708/0.3	360	254	2.2	0.386	0.492	0.446
70	999/0.3	454	320	2.4	0.272	0.347	0.314
95	1351/0.3	547	386	2.6	0.206	0.263	0.239

A medium heavy coated rutile type good running Hard Facing Welding Electrodes, deposit a tough air hardening type of weld metal of approximately 350 to 600 BHN hardness.

The weld metal is machinable and recommended for application involving maximum hardness as required.

Typical applications suitable for shear blades brake shoes, coupling, conveyor parts, roller tractor wheels, steel casting, shafts, and axles.

Uses
Hard Facing Electrodes are used for all kinds of gears, shafts, hammers, pulleys, couplings and spindles.

We cater to your welding requirements of HOFR Welding Cables in the form of Spartech International Welding Cables and Weldcor.

For more information, fill our Enquiry Form.

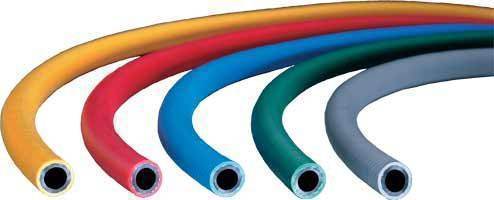

Wrapped Welding Hose Pipe

We are engaged in offering a wide range of premium quality Wrapped Welding Hose Pipes, which is highly suitable in various welding machines as a piping component. These are procured from certified manufacturers and are highly appreciated among the clients for its variety of features, such as durability, optimum performance, easy maintenance, cost effectiveness and reliability. We as manufacturers and suppliers of Wrapped Welding Hose Pipes, provide our customers with best quality and durable Hose Pipes for Industrial Use. They are manufactured in compliance with set industrial standards. These Welding Hoses are known for their high performance, tensile strength and durability among the clients. Moreover, we offer Welding Hoses in varied dimensions and sizes to meet the clients requirements. Wrapped Welding Hose Pipe

Features

We cater to your welding requirements of Wrapped Welding Hose Pipes in the form of Spartech International Pipes.
